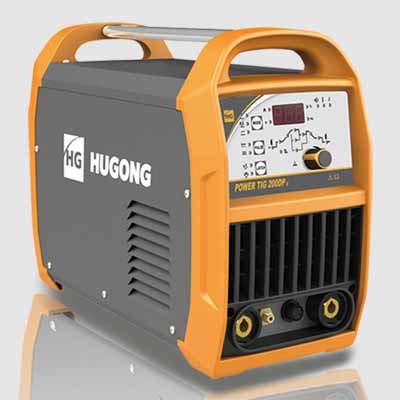

POWER TIG 160DPIII/200DPIII TIG[GTAW]

Popis

Product description

●Portable Inverter DC HF TIG With Pulse / MMA Welder

●New Generation IGBT Inverter Technology

●Ideal for welding of carbon steels, low-alloy steels and stainless steels and oluminum

●Digital Display

●Equipped with voltage protection and thermal protection

●Easy-to-use and user-friendly control panel

●Welding Mode (DC HF TIG / LIFT TIG/MMA), TIG / Pulse TIG and 2T/4T selections

●Adjustable & displayable gas pre-flow/post flow, ignition/ base/peak current; simply welding procedure parameters.

●Adjustable; Hot start, Arc Force and built-in Anti-Sticking for MMA welding ●Steeples Welding Current/Setting Knob

●Power, Overload and Under/Over-Voltage LED indicators ●Easy welding cable connections with European type quick connectors

●Foot control can be used ●Fan cooling system

●IP21S Protection Class ●Lightweight, Small and Patented Compact Design

●Weight is only 9 Kg. ●Dimensions (cm.) (L×W×H) 44 × 17.5 × 34

Model	POWER TIG 160DPIII	POWER TIG 200DPIII
Input Power (V)	230	230
Max Input Current (A)	38	38
Rated Input Capacity (kVA)	8.7	8.7
Output Open Circuit Voltage (V)	66	66
Welding Current Adjustment Range(A)	TIG 5-200/MMA 20-200	TIG 5-200/MMA 20-200
Rated Output(A) (20℃) / (40℃)	60%20%@160	60%20%@200
Weight (kg)	9	9
LxWxH (mm)	440 x 175 x 340	440 x 175 x 340
